1. Single bag filter with adjustable support leg for simplified installation.

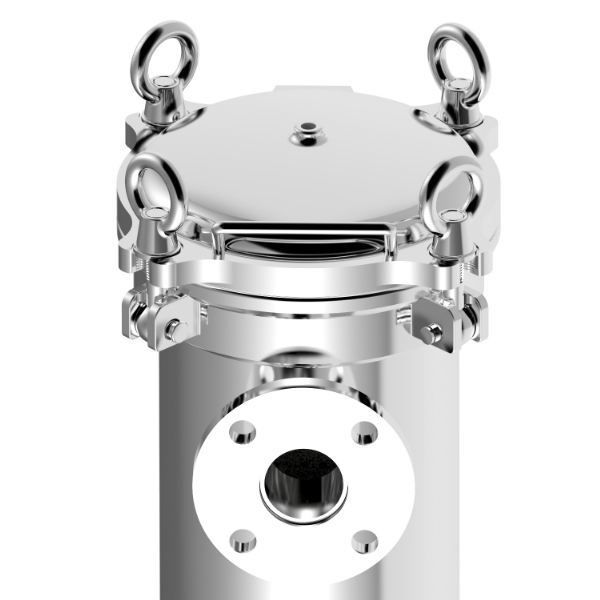

2. Swing-bolt type allows for tightly closure and easy installation without tool.
3. Well O-ring groove design improves sealing and prevents loosening.

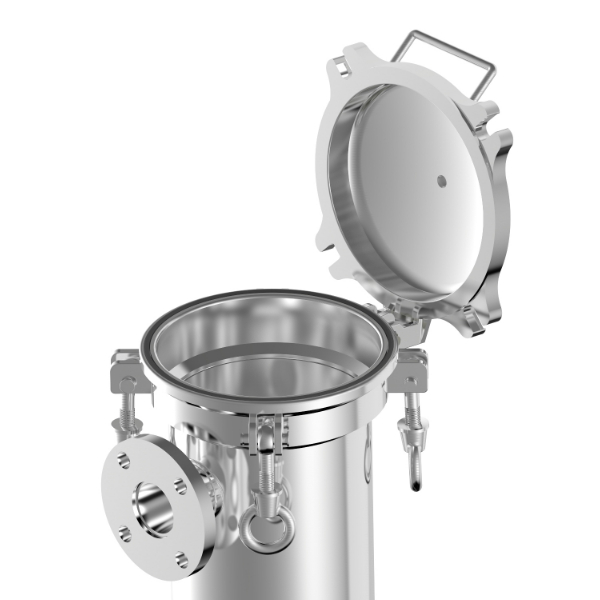

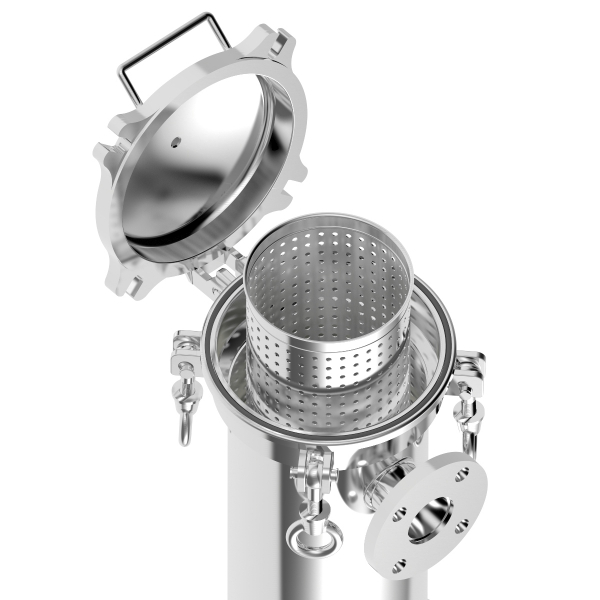

4. Opening angle of 105 degree for easy and space-saving bag filter change-outs.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| KH | 2 | 4 | SB | 2 | 10K | E | EA |
| Model | Bag Size | Material | Connection | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
KH |
1-Bag No.1 2-Bag No.2 3-Bag No.3 4-Bag No.4 |
4-304 6-316 6L-316L |
SS-Side In & Side Out SB-Side In & Bottom Out |
21-1/2" 43-3/4” 1-1" 121-1-1/2" 2-2" 221-2-1/2" 3-3” |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing S- Sand Blasting |

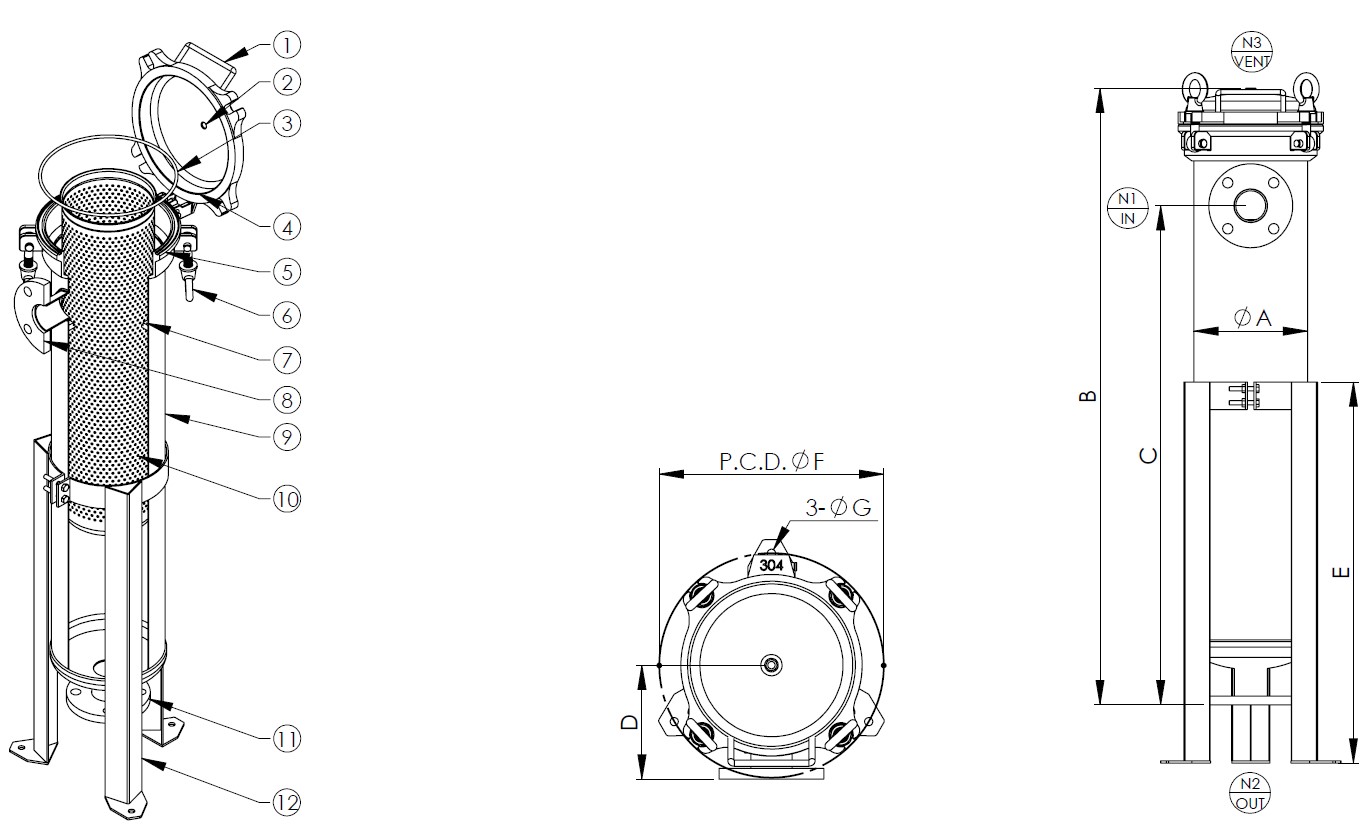

1. Handle
2. Vent
3. O-ring
4. Top cover
5. Shell flange
6. Eye bolt
7. Filter bag plate
8. Inlet
9. Shell
10. Basket
11. Outlet
12. Support leg
| Model | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m | G m/m | M³/Hr | GPM |
| KH1 | 1/2"~3" | 1/4" | Ø232 | 735 | 545 | 176 | 515 | Ø323 | Ø12 | 20 | 88 |
| KH2 | 1/2"~3" | 1/4" | Ø232 | 1115 | 925 | 176 | 515 | Ø323 | Ø12 | 45 | 198 |
| KH3 | 1/2"~3" | 1/4" | Ø180 | 500 | 350 | 150 | 350 | Ø252 | Ø12 | 4.9 | 20 |
| KH4 | 1/2"~3" | 1/4" | Ø180 | 600 | 450 | 150 | 350 | Ø252 | Ø12 | 9 | 40 |
