1. Available in widely configurations with 2~8 filter bags allows for high filtration efficiency.

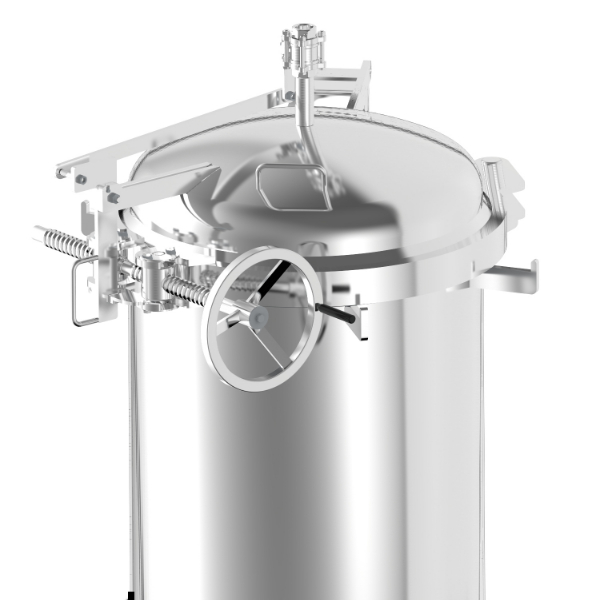

2. Quick-open clamp type closure allows for tightly closure and easy installation without tool.
3. Well O-ring groove design improves sealing and prevents loosening.

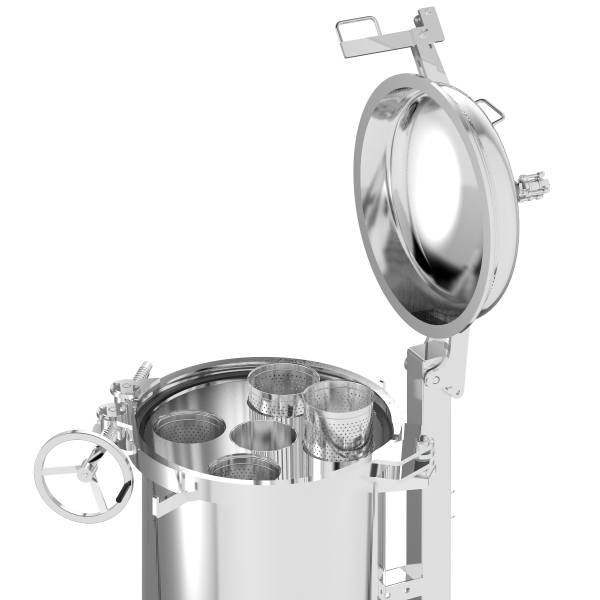

4. Spring lid type cover design allow for easy and safe filter bag change-outs.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater

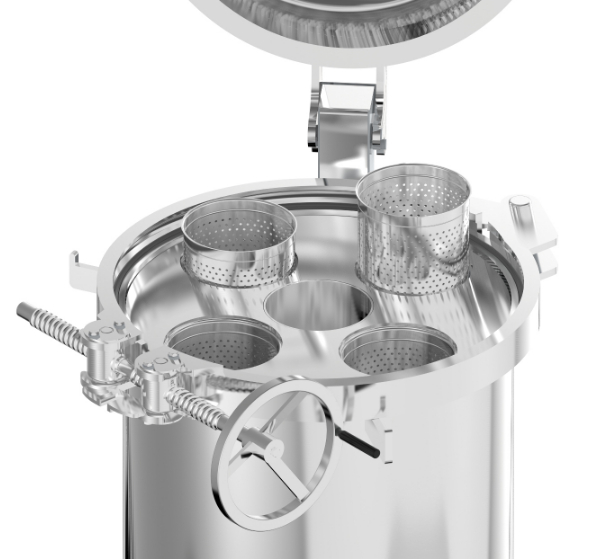

Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| KRQ | 4 | 2 | 4 | SB | 4 | 150P | E | EA |
| Model | No. of Filter Bag | Bag Size | Material | Connection | Connection Size | Connection Type | O-ring | Outside/Inside Finishes |
KRQ |
2-12 |
1-Bag No.1 2-Bag No.2 |
4-304 6-316 6L-316L |
SS- Side In & Side Out SB- Side In & Bottom Out BB- Bottom In & Bottom Out |
2-2" 221-2-1/2" 3-3'' 4-4'' 5-5'' 6-6'' 8-8'' 10-10'' 12-12'' |
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc PM-PT/BSPT/R NF-NPT (Female) NM-NPT (Male) BF-BSPF/G BM-BSPF/G |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing S- Sand Blasting |

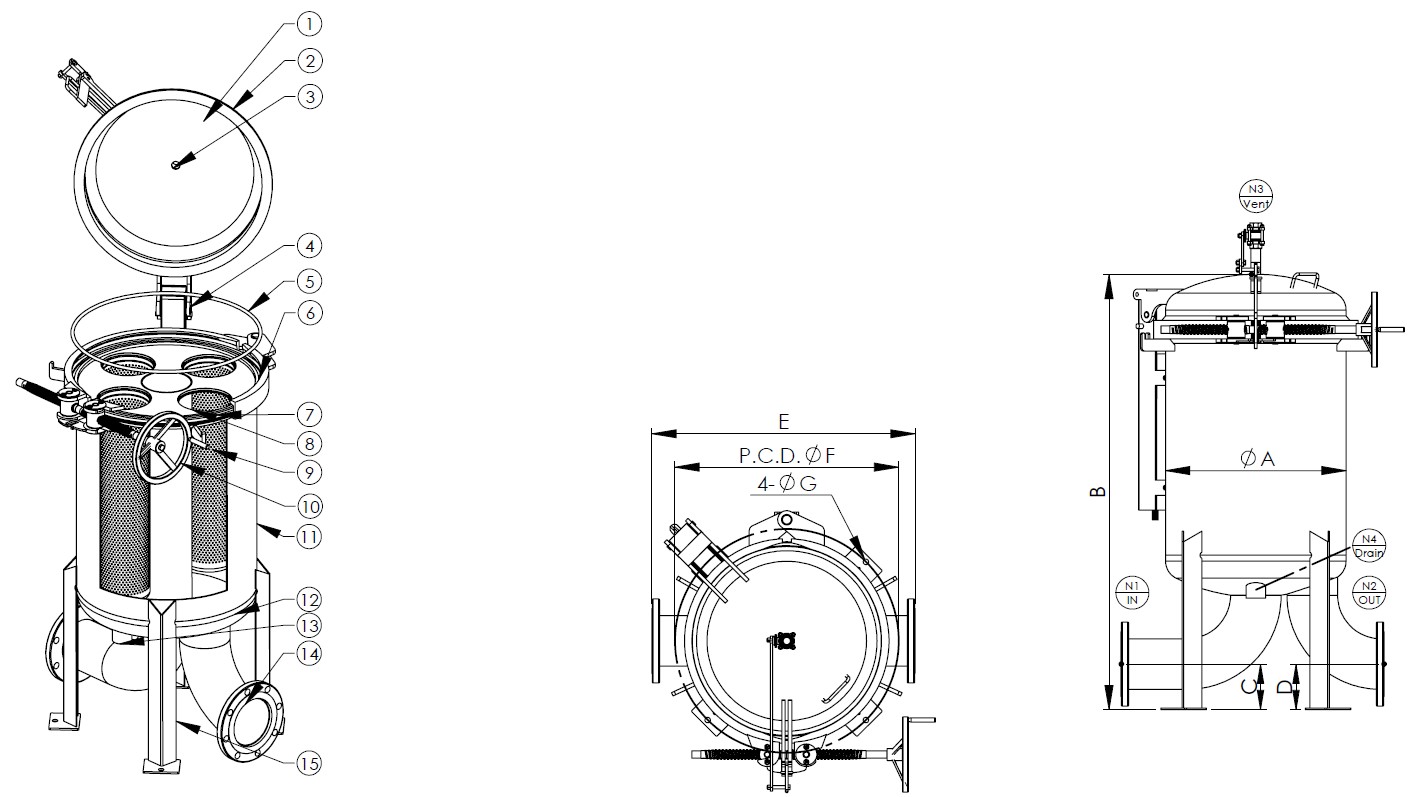

1. Top cover
2. Top cover flange
3. Vent
4. Raise cover unit
5. O-ring
6. Clamp
7. Shell flange
8. Filter bag plate
9. Basket
10. Turntable
11. Shell
12. Bottom cover
13. Drain
14. Inlet / Outlet
15. Support leg
| Model | Qty of Bags | N1/N2 | N3 | N4 | A m/m | B m/m | C m/m | D m/m | E m/m | F(PCD) m/m | G m/m | M³/Hr |
| KRQ2 | 2 | 3" | 1" | 2" | Ø406 | 1192 | 108 | 108 | 584 | Ø516 | Ø14 | 90 |
| KRQ2 | 2 | 4" | 1" | 2" | Ø406 | 1248 | 127 | 127 | 660 | Ø516 | Ø14 | 90 |
| KRQ3 | 3 | 3" | 1" | 2" | Ø508 | 1231 | 108 | 108 | 686 | Ø618 | Ø14 | 135 |
| KRQ3 | 3 | 4" | 1" | 2" | Ø508 | 1287 | 127 | 127 | 724 | Ø618 | Ø14 | 135 |
| KRQ4 | 4 | 3" | 1" | 2" | Ø560 | 1253 | 108 | 108 | 686 | Ø704 | Ø18 | 180 |
| KRQ4 | 4 | 4" | 1" | 2" | Ø560 | 1309 | 127 | 127 | 737 | Ø704 | Ø18 | 180 |
| KRQ4 | 4 | 6" | 1" | 2" | Ø600 | 1423 | 152 | 152 | 876 | Ø744 | Ø18 | 180 |
| KRQ5 | 5 | 3" | 1" | 2" | Ø560 | 1253 | 108 | 108 | 698 | Ø704 | Ø18 | 225 |
| KRQ5 | 5 | 4" | 1" | 2" | Ø560 | 1309 | 127 | 127 | 737 | Ø704 | Ø18 | 225 |
| KRQ5 | 5 | 6" | 1" | 2" | Ø600 | 1423 | 152 | 152 | 876 | Ø744 | Ø18 | 225 |
| KRQ6 | 6 | 3" | 1" | 2" | Ø600 | 1269 | 108 | 108 | 724 | Ø744 | Ø18 | 270 |
| KRQ6 | 6 | 4" | 1" | 2" | Ø600 | 1325 | 127 | 127 | 763 | Ø744 | Ø18 | 270 |
| KRQ6 | 6 | 6" | 1" | 2" | Ø600 | 1423 | 152 | 152 | 876 | Ø744 | Ø18 | 270 |
| KRQ8 | 8 | 3" | 1" | 2" | Ø762 | 1343 | 108 | 108 | 813 | Ø962 | Ø19 | 360 |
| KRQ8 | 8 | 4" | 1" | 2" | Ø762 | 1399 | 127 | 127 | 864 | Ø962 | Ø19 | 360 |
| KRQ8 | 8 | 6" | 1" | 2" | Ø762 | 1498 | 152 | 152 | 927 | Ø962 | Ø19 | 360 |
| KRQ8 | 8 | 8" | 1" | 2" | Ø762 | 1604 | 184 | 184 | 1047 | Ø962 | Ø19 | 360 |
