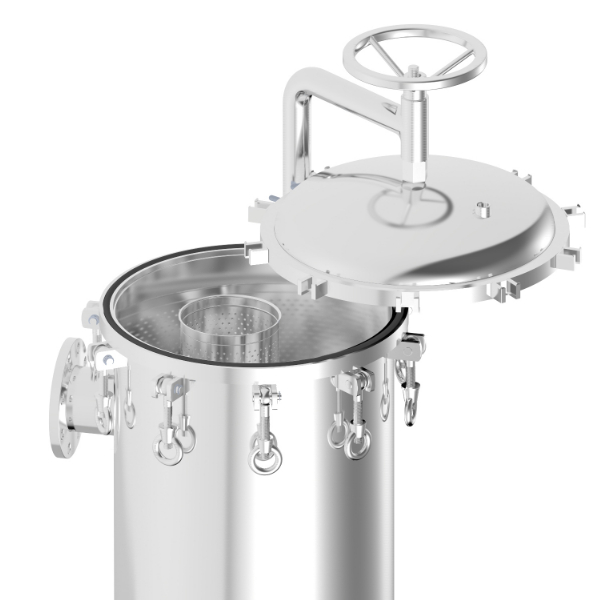

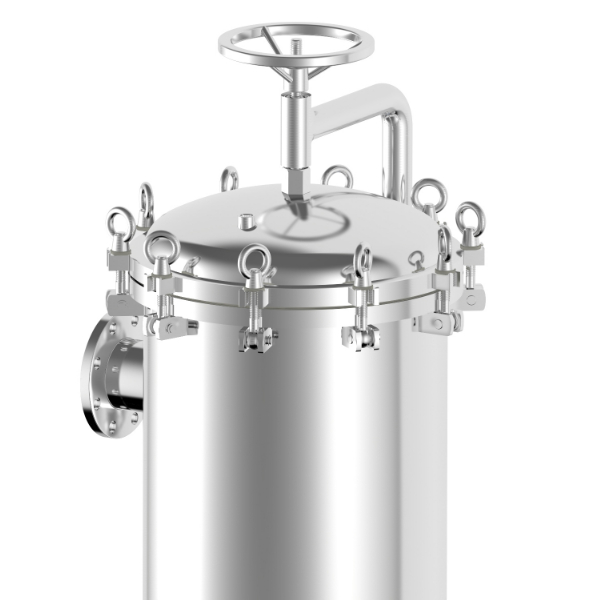

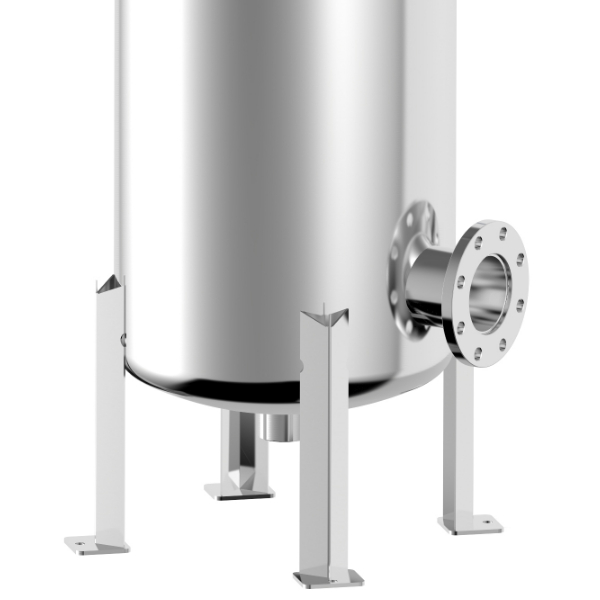

KM(SS)
Multi Filter Bag Housing (Side in & Side Out)

Design P.: 150 PSI

Design T.: 100°C

Max Operating P.: 150 PSI

Operating T.: 75°C



Accessory: Filter Bag. Bag pressing. Bag bracket. Metal float ball.

Feature

1. Available with 2~12 filter bags provide high filtration efficiency.

2. Swing-bolt type allows for tightly closure and easy installation without tool.

3. Well O-ring groove design improves sealing and prevents loosening.

Applications

Water treatment

RO protection and pre-filtration process

Seawater

Groundwater

Sludge treatment

Food & Beverage Industry

Wine & Beer

Food industry

Chemicals & Biotechnology

Pharmaceutical & Cosmetic

Electroplating Industry

Electronic Industry

Semiconductor

Refinery & Production Filtration

Automotive

Mining, Oil & Gas

Cooling tower

Purchase Code
KM 2 2 4 SS 3 10K E EA
Model No. of Filter Bag Bag Size Material Connection Connection Size Connection Type O-ring Outside & Inside Finishes

KM

2-12

1-Bag No.1
2-Bag No.2

4-304
6-316
6L-316L

SS- Side In & Side Out

2-2"
221-2-1/2"
3-3"
4-4"
5-5"
6-6"
8-8"
10-10"
12-12"

150P-ANSI
10K-JIS
PN10-DIN
C-CLAMP
PF-PT/BSPT/Rc
      (Female)
PM-PT/BSPT/R
        (Male)
NF-NPT (Female)
NM-NPT (Male)
BF-BSPF/G (Female)
BM-BSPF/G (Male)

E-EPDM
N-NBR
V-VITON
S-SILICONE
TS-TEFLON+SILICONE

A-ACID Pickling
E-Electropolishing
P-Polishing
S-Sand Blasting

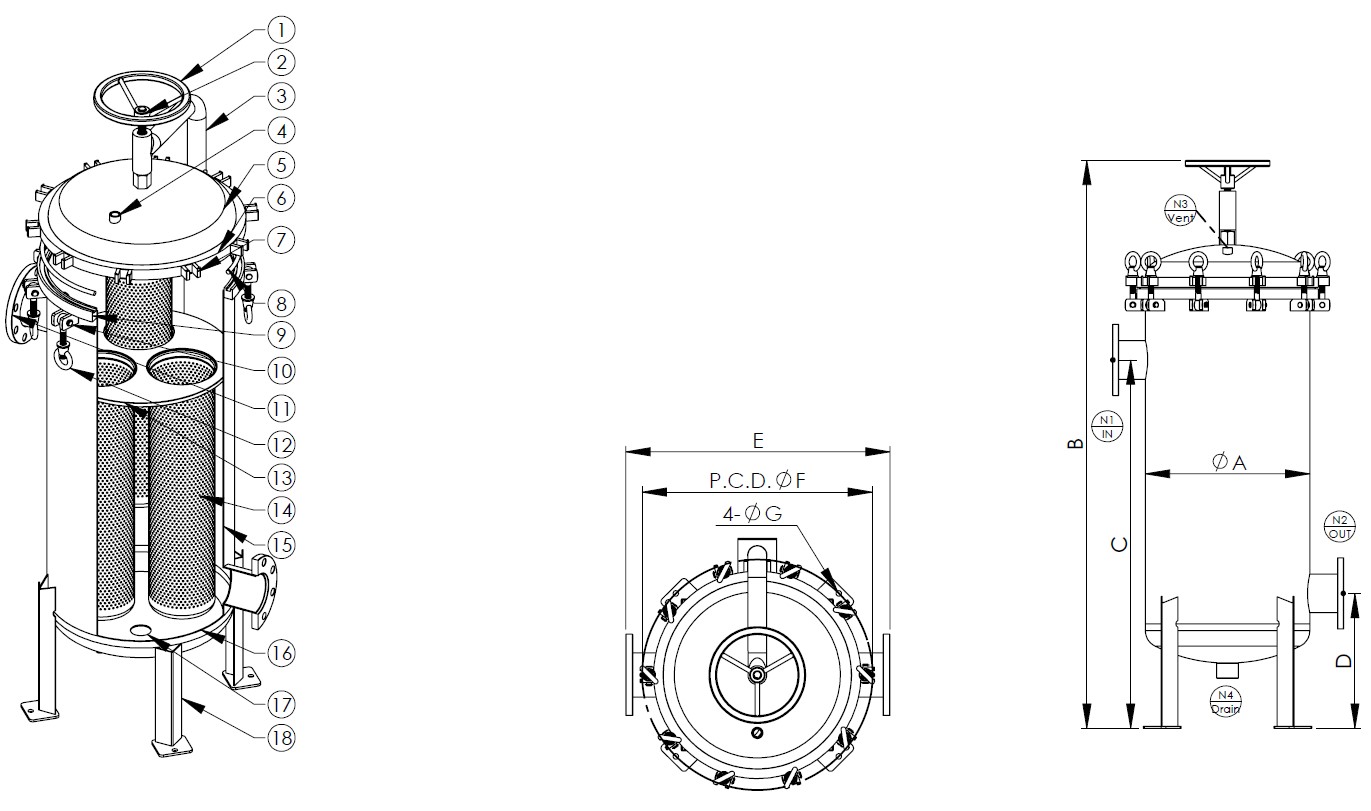

Drawing

1. Turntable

2. Screw rod

3. Davit

4. Vent

5. Top cover

6. Top cover flange

7. Eye nut socket

8. O-ring

9. Shell flange

10. Eye bolt socket

11. Inlet/Outlet

12. Eye bolt

13. Filter bag plate

14. Basket

15. Shell

16. Bottom cover

17. Drain

18. Support leg

Specification
Model

No. of bags

N1/N2

 N3

N4

A m/m

B m/m

C m/m

D m/m

E m/m

F(PCD)m/m

 G m/m

 M³/Hr
KM2 2 3" 1/2" 2" Ø406 1667 1075 400 606 Ø516 Ø14 90
KM2 2 4" 1/2" 2" Ø406 1707 1090 400 606 Ø516 Ø14 90
KM3 3 3" 1/2" 2" Ø508 1686 1075 400 708 Ø618 Ø14 135
KM3 3 4" 1/2" 2" Ø508 1726 1090 400 708 Ø618 Ø14 135
KM4 4 3" 1/2" 2" Ø508 1686 1075 400 708 Ø618 Ø14 180
KM4 4 4" 1/2" 2" Ø508 1726 1090 400 708 Ø618 Ø14 180
KM4 4 6" 1/2" 2" Ø508 1806 1145 450 708 Ø618 Ø14 180
KM5 5 3" 1/2" 2" Ø560 1768 1125 450 760 Ø704 Ø18 225
KM5 5 4" 1/2" 2" Ø560 1808 1140 450 760 Ø704 Ø18 225
KM5 5 6" 1/2" 2" Ø560 1838 1145 450 760 Ø704 Ø18 225
KM6 6 3" 1/2" 2" Ø600 1774 1125 450 800 Ø744 Ø18 270
KM6 6 4" 1/2" 2" Ø600 1814 1140 450 800 Ø744 Ø18 270
KM6 6 6" 1/2" 2" Ø600 1844 1145 450 800 Ø744 Ø18 270
KM7 7 3" 1/2" 2" Ø600 1774 1125 450 800 Ø744 Ø18 315
KM7 7 4" 1/2" 2" Ø600 1814 1140 450 800 Ø744 Ø18 315
KM7 7 6" 1/2" 2" Ø600 1844 1145 450 800 Ø744 Ø18 315
KM7 7 8" 1/2" 2" Ø600 1919 1180 500 800 Ø744 Ø18 315
KM8 8 4" 1/2" 2" Ø650 1825 1140 450 850 Ø794 Ø18 360
KM8 8 6" 1/2" 2" Ø650 1905 1195 500 850 Ø794 Ø18 360
KM8 8 8" 1/2" 2" Ø650 1930 1180 500 850 Ø794 Ø18 360
KM9 9 6" 1/2" 2" Ø762 2043 1245 550 962 Ø962 Ø19 405
KM9 9 8" 1/2" 2" Ø762 2118 1280 600 962 Ø962 Ø19 405
KM10 10 6" 1/2" 2" Ø762 2043 1245 550 962 Ø962 Ø19 450
KM10 10 8" 1/2" 2" Ø762 2118 1280 600 962 Ø962  Ø19  450
KM10 10 10" 1/2" 2" Ø762 2173 1285 600 962 Ø962  Ø19  450
KM12 12 8" 1/2" 2" Ø813 2139 1280 600 1013 Ø1013   Ø19  540
KM12 12 10" 1/2" 2" Ø813 2244 1335 650 1013 Ø1013   Ø19  540
