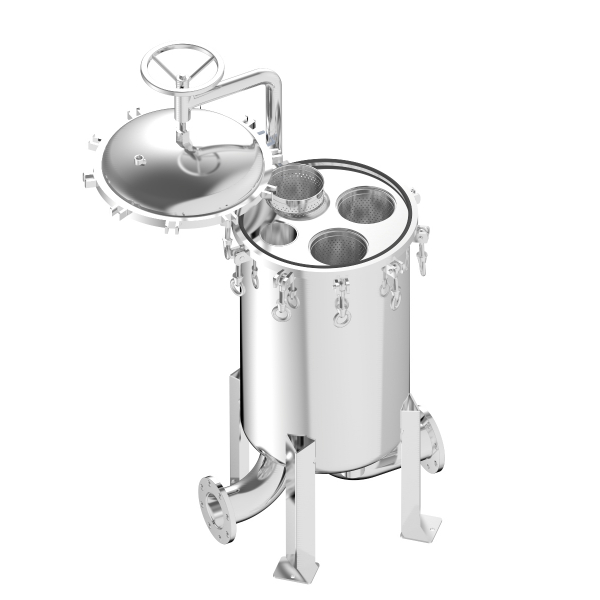

KM(BB)

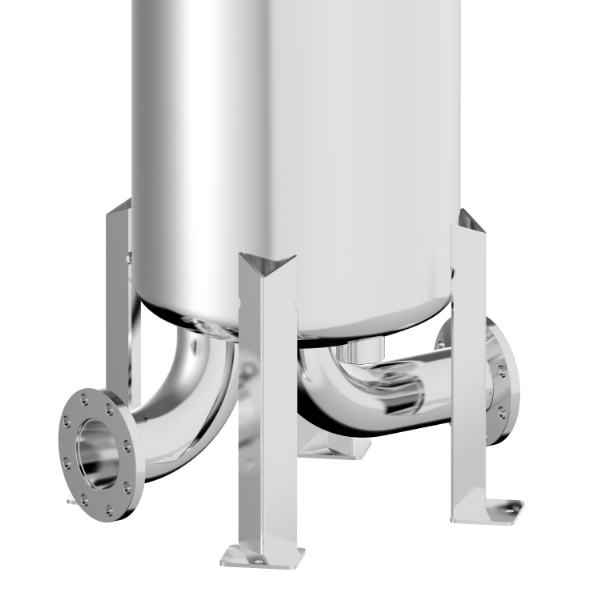

Multi Filter Bag Housing (Bottom In& Bottom Out)

Design P.: 150 PSI

Design T.: 100°C

Max Operating P.: 150 PSI

Operating T.: 75°C



Accessory: Filter Bag. Bag pressing. Bag bracket. Metal float ball.

Feature

1. Available with 2~12 filter bags provide high filtration efficiency.

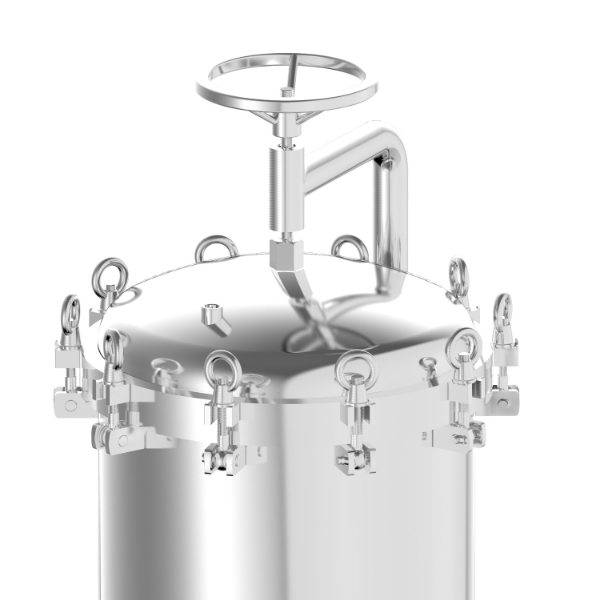

2. Swing-bolt type allows for tightly closure and easy installation without tool.

3. Well O-ring groove design improves sealing and prevents loosening.

Applications

Water treatment

RO protection and pre-filtration process

Seawater

Groundwater

Sludge treatment

Food & Beverage Industry

Wine & Beer

Food industry

Chemicals & Biotechnology

Pharmaceutical & Cosmetic

Electroplating Industry

Electronic Industry

Semiconductor

Refinery & Production Filtration

Automotive

Mining, Oil & Gas

Cooling tower

Purchase Code
KM 2 2 4 BB 3 10K E EA
Model No. of Filter Bag Bag Size Material Connection Connection Size Connection Type O-ring Outside & Inside Finishes

KM

2-12

1-Bag No.1
2-Bag No.2

4-304
6-316
6L-316L

BB- Bottom In & Bottom Out

2-2"
221-2-1/2"
3-3"
4-4"
5-5"
6-6"
8-8"
10-10"
12-12"

150P-ANSI
10K-JIS
PN10-DIN
C-CLAMP
PF-PT/BSPT/Rc
      (Female)
PM-PT/BSPT/R
        (Male)
NF-NPT (Female)
NM-NPT (Male)
BF-BSPF/G (Female)
BM-BSPF/G (Male)

E-EPDM
N-NBR
V-VITON
S-SILICONE
TS-TEFLON+SILICONE

A-ACID Pickling
E-Electropolishing
P-Polishing
S-Sand Blasting

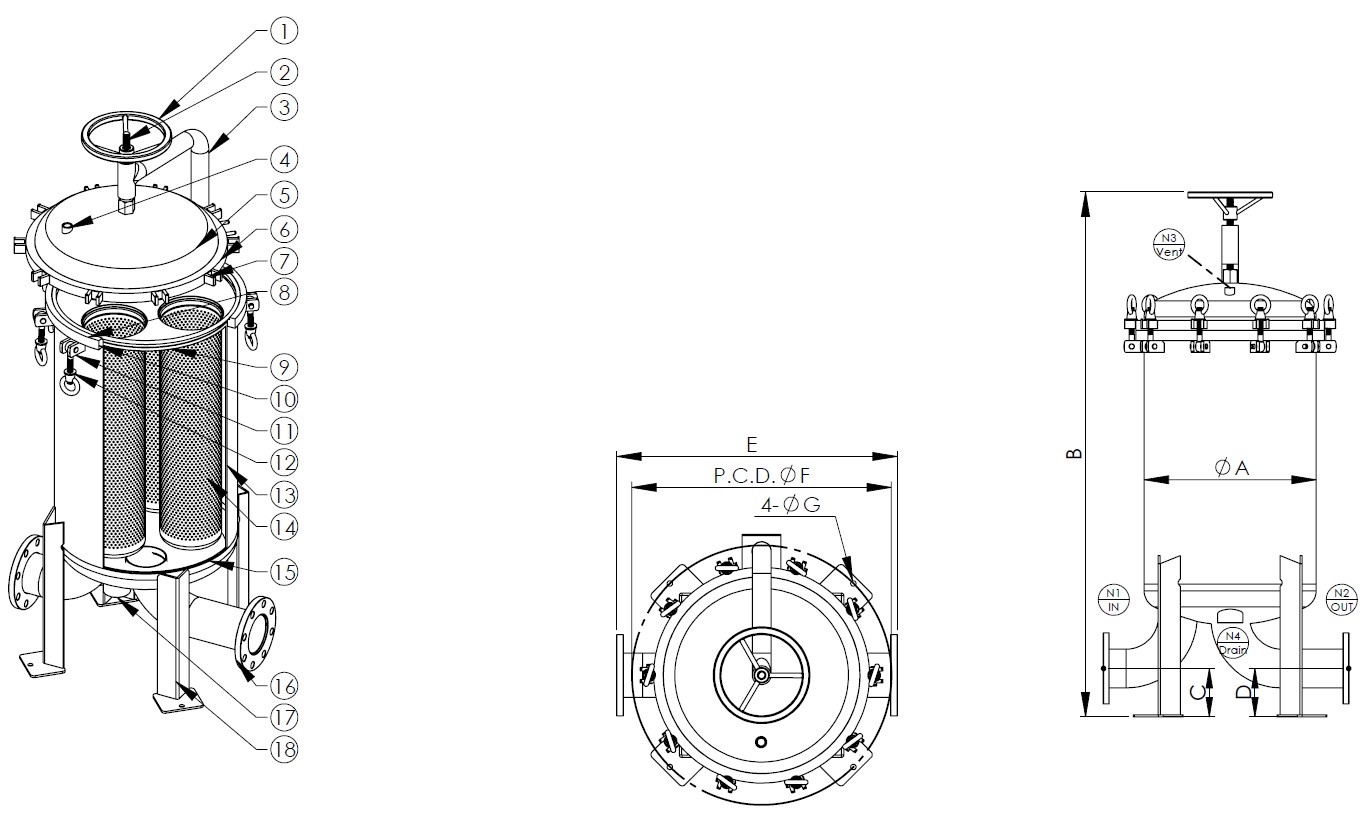

Drawing

1. Turntable

2. Screw rod

3. Davit

4. Vent

5. Top cover

6. Top cover flange

7. Eye nut socket

8. O-ring

9. Filter bag plate

10. Shell flange

11. Eye bolt socket

12. Eye bolt

13. Shell

14. Basket

15. Bottom cover

16. Inlet / Outlet

17. Drain

18. Support leg

Specification
Model

No. of bags

N1/N2

 N3

N4

A m/m

B m/m

C m/m

D m/m

E m/m

F(PCD)m/m

 G m/m

 M³/Hr
KM2 2 3" 1/2" 2" Ø406 1679 108 108 584 Ø516 Ø14 90
KM2 2 4" 1/2" 2" Ø406 1774 127 127 660 Ø516 Ø14 90
KM3 3 3" 1/2" 2" Ø508 1716 108 108 686 Ø618 Ø14 135
KM3 3 4" 1/2" 2" Ø508 1812 127 127 724 Ø618 Ø14 135
KM4 4 3" 1/2" 2" Ø560 1716 108 108 698 Ø704 Ø18 180
KM4 4 4" 1/2" 2" Ø560 1812 127 127 737 Ø704 Ø18 180
KM4 4 6" 1/2" 2" Ø600 1960 152 152 876 Ø744 Ø18 180
KM5 5 3" 1/2" 2" Ø560 1760 108 108 698 Ø704 Ø18 225
KM5 5 4" 1/2" 2" Ø560 1856 127 127 737 Ø704 Ø18 225
KM5 5 6" 1/2" 2" Ø600 2004 152 152 876 Ø744 Ø18 225
KM6 6 3" 1/2" 2" Ø600 1774 108 108 734 Ø744 Ø18 270
KM6 6 4" 1/2" 2" Ø600 1870 127 127 763 Ø744 Ø18 270
KM6 6 6" 1/2" 2" Ø600 2018 152 152 876 Ø744 Ø18 270
KM7 7 3" 1/2" 2" Ø762 1774 108 108 813 Ø962 Ø19 315
KM7 7 4" 1/2" 2" Ø762 1870 127 127 864 Ø962 Ø19 315
KM7 7 6" 1/2" 2" Ø762 2018 152 152 927 Ø962 Ø19 315
KM7 7 8" 1/2" 2" Ø762 2177 184 184 1047 Ø962 Ø19 315
KM8 8 4" 1/2" 2" Ø762 1893 127 127 864 Ø962 Ø19 360
KM8 8 6" 1/2" 2" Ø762 2042 152 152 927 Ø962 Ø19 360
KM8 8 8" 1/2" 2" Ø762 2202 184 184 1047 Ø962 Ø19 360
KM9 9 6" 1/2" 2" Ø813 2150 152 152 1016 Ø1013 Ø19 405
KM9 9 8" 1/2" 2" Ø813 2310 184 184 1016 Ø1013 Ø19 405
KM10 10 6" 1/2" 2" Ø864 2150 152 152 1092 Ø1063 Ø19 450
KM10 10 8" 1/2" 2" Ø864 2310 184 184 1067 Ø1063  Ø19  450
KM10 10 10" 1/2" 2" Ø965 2489 216 216 1219 Ø1165  Ø19  450
KM12 12 8" 1/2" 2" Ø965 2343 184 184 1130 Ø1165  Ø19  540
KM12 12 10" 1/2" 2" Ø965 2522 216 216 1219 Ø1165  Ø19  540
