1. Easy installation without tool.

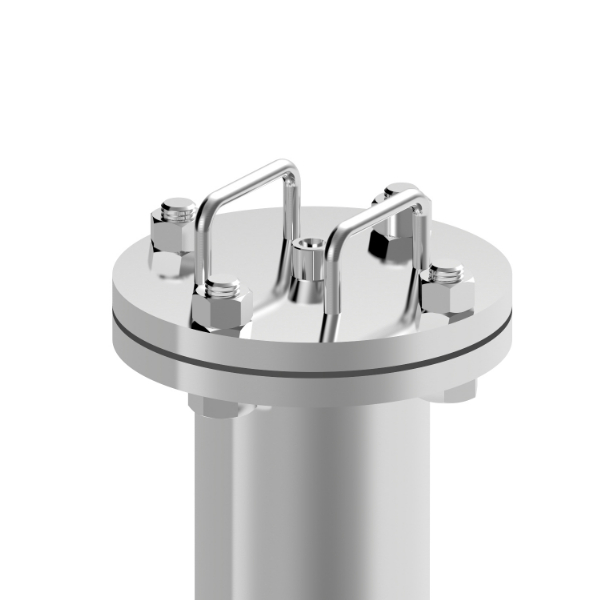

2. Available with swing bolt closure for faster cartridge change-outs.
3. One well design pedestal is available with both DOE and SOE cartridge specification.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| TAH | 1 | 4 | F | 1 | PF | E | EA |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
TAH |
1-10" 2-20" 3-30" 4-40" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
21-1/2" 43-3/4” 1-1" 121-1-1/2" 2-2" |
150P-ANSI 10K-JIS PN10-DIN C-CLAMP PF-PT/BSPT/Rc (Female) PM-PT/BSPT/R (Male) NF-NPT (Female) NM-NPT (Male) BF-BSPF/G (Female) BM-BSPF/G (Male) |
E-EPDM N-NBR V-VITON S-SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing |

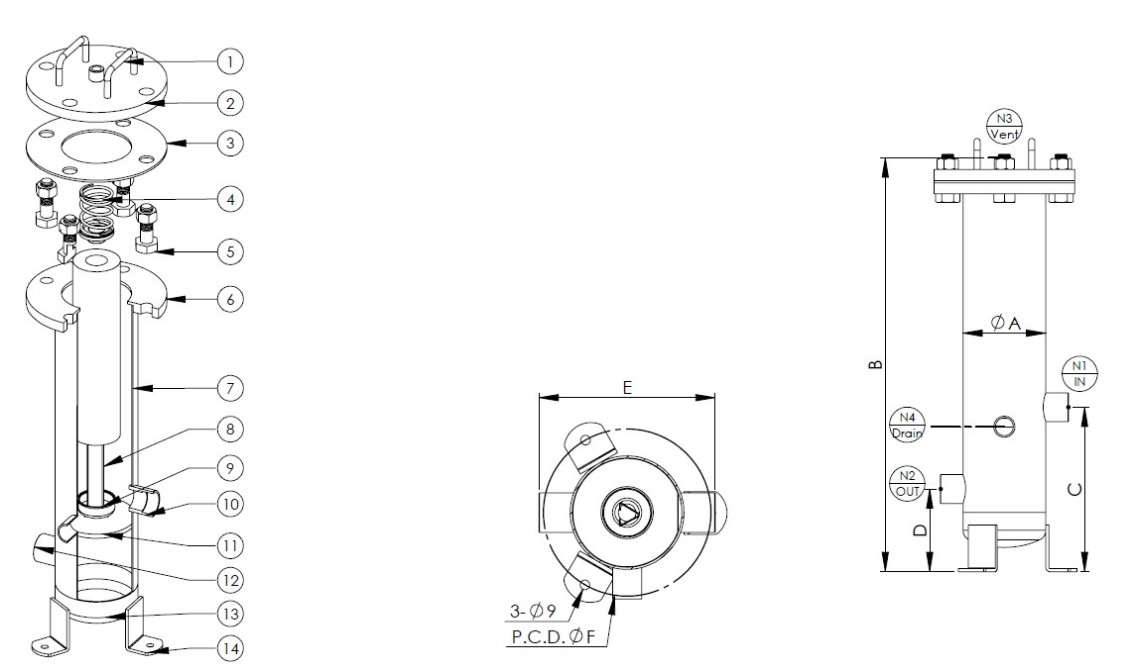

1. Handle
2. Top Cover
3. Gasket
4. Springs
5. Nut
6. Shell flange
7. Shell
8. Cartridge post
9. Pedestal
10. Inlet
11. Cartridge support plate
12. Outlet
13. Bottom cover
14. Support leg
| Model | Length | N1/N2 | N3 | N4 | A m/m | B m/m | C m/m | D m/m | E m/m | F (PCD) m/m | M³/Hr | GPM |
| TAH1 | 10" | 1/2"~2" | 1/4" | 3/4" | Ø106 | 536 | 210 | 105 | 165 | Ø156 | 1 | 4 |
| TAH2 | 20" | 1/2"~2" | 1/4" | 3/4" | Ø106 | 786 | 210 | 105 | 165 | Ø156 | 2 | 9 |
| TAH3 | 30" | 1/2"~2" | 1/4" | 3/4" | Ø106 | 1036 | 210 | 105 | 165 | Ø156 | 3 | 13 |
| TAH4 | 40" | 1/2"~2" | 1/4" | 3/4" | Ø106 | 1286 | 210 | 105 | 165 | Ø156 | 4 | 18 |
