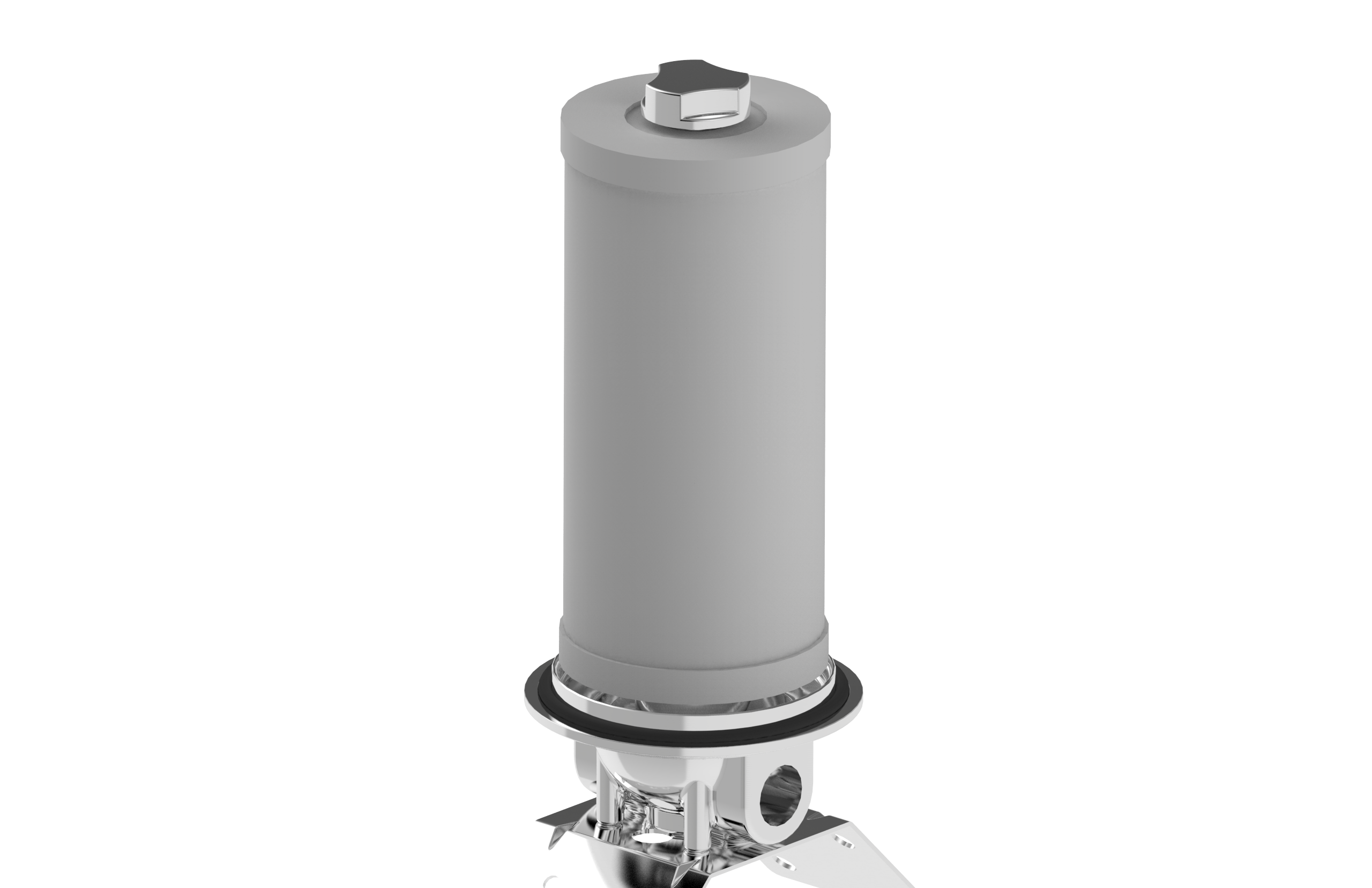

1. Casting Cap type for home-use filter housing.
2. Filtration for running water.

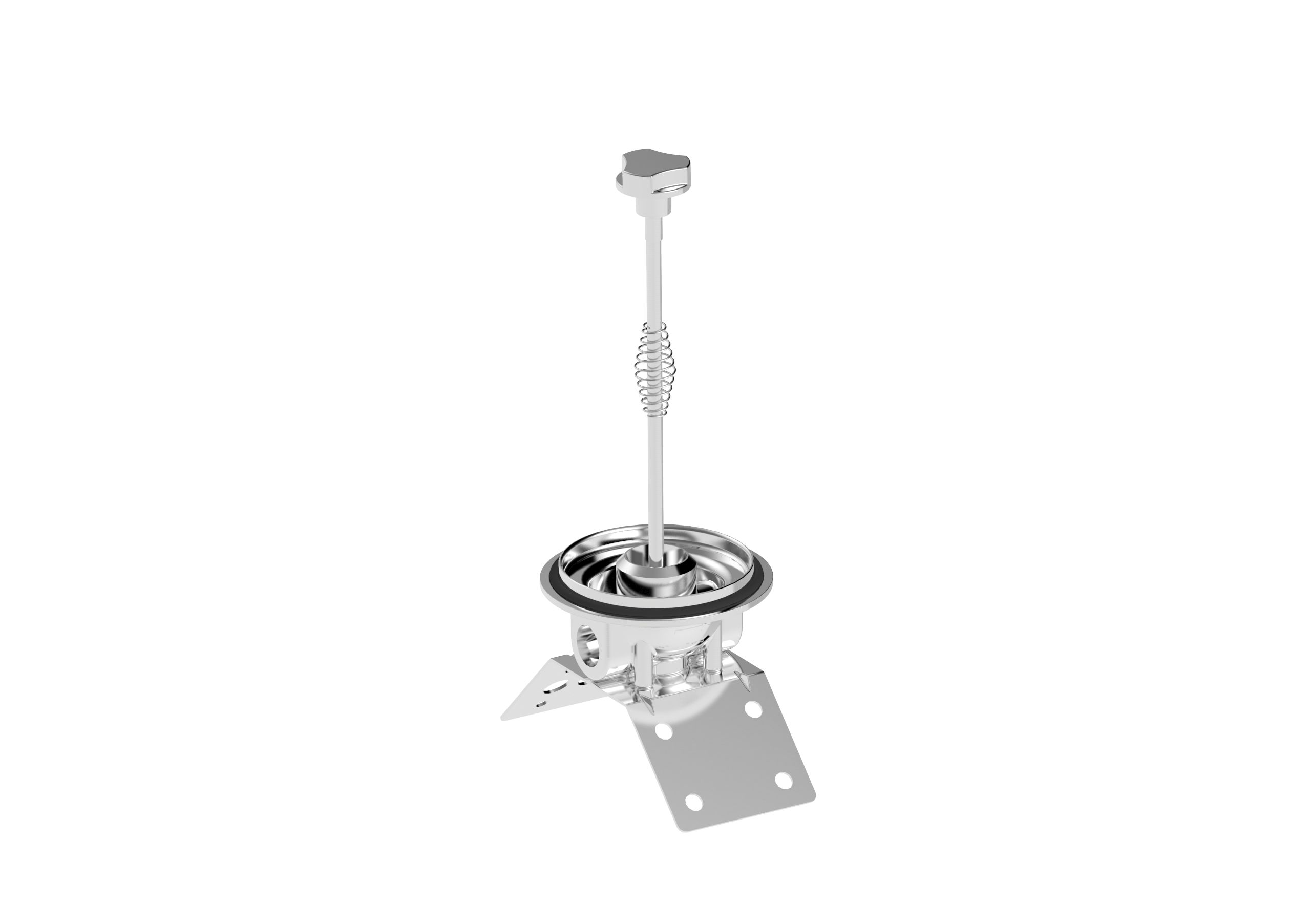

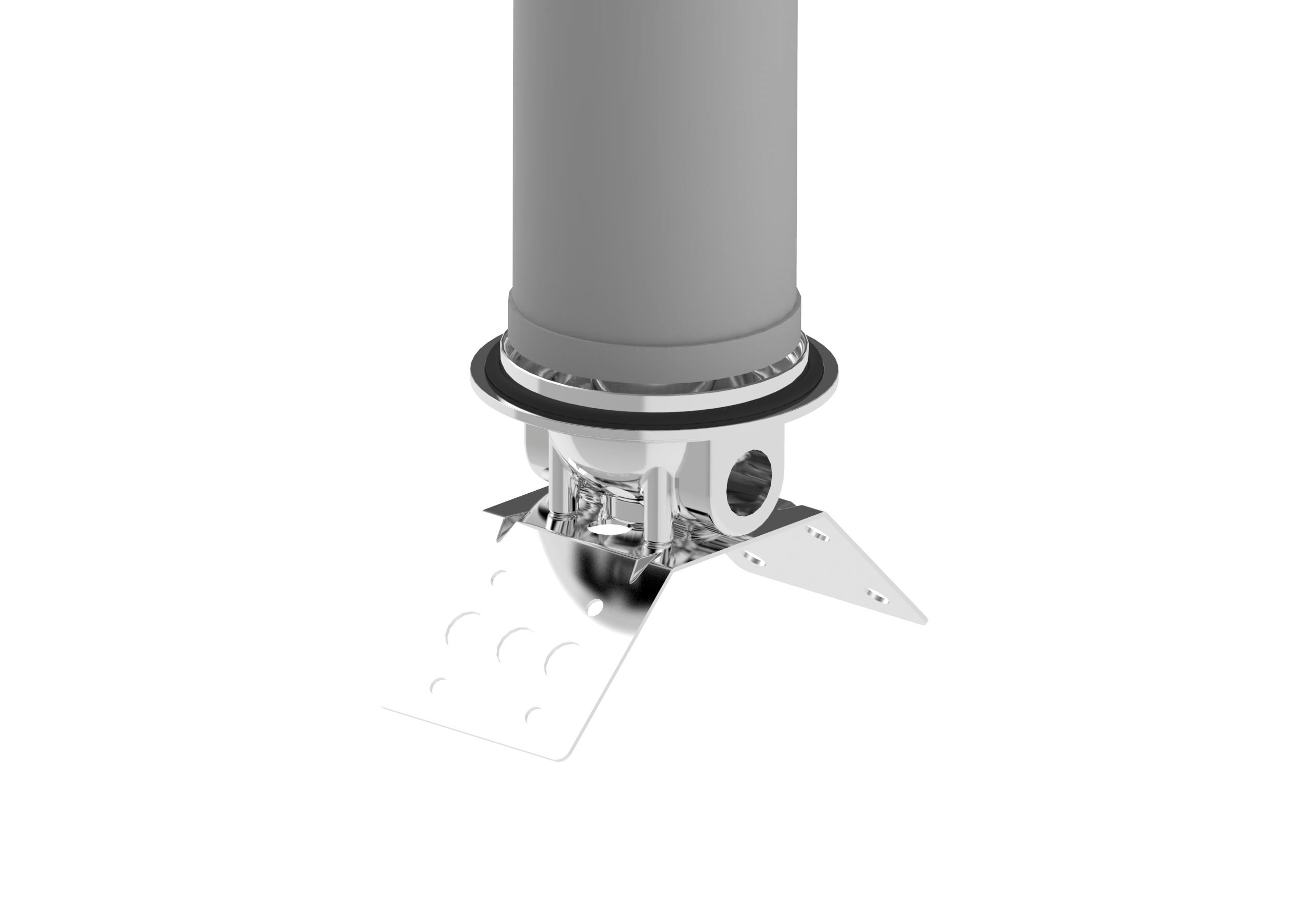

3. Tool-free install makes cartridge change-outs and housing cleaning easy and convenient.
4. Silicone gasket is approved by Japan Act Governing Food Sanitation.

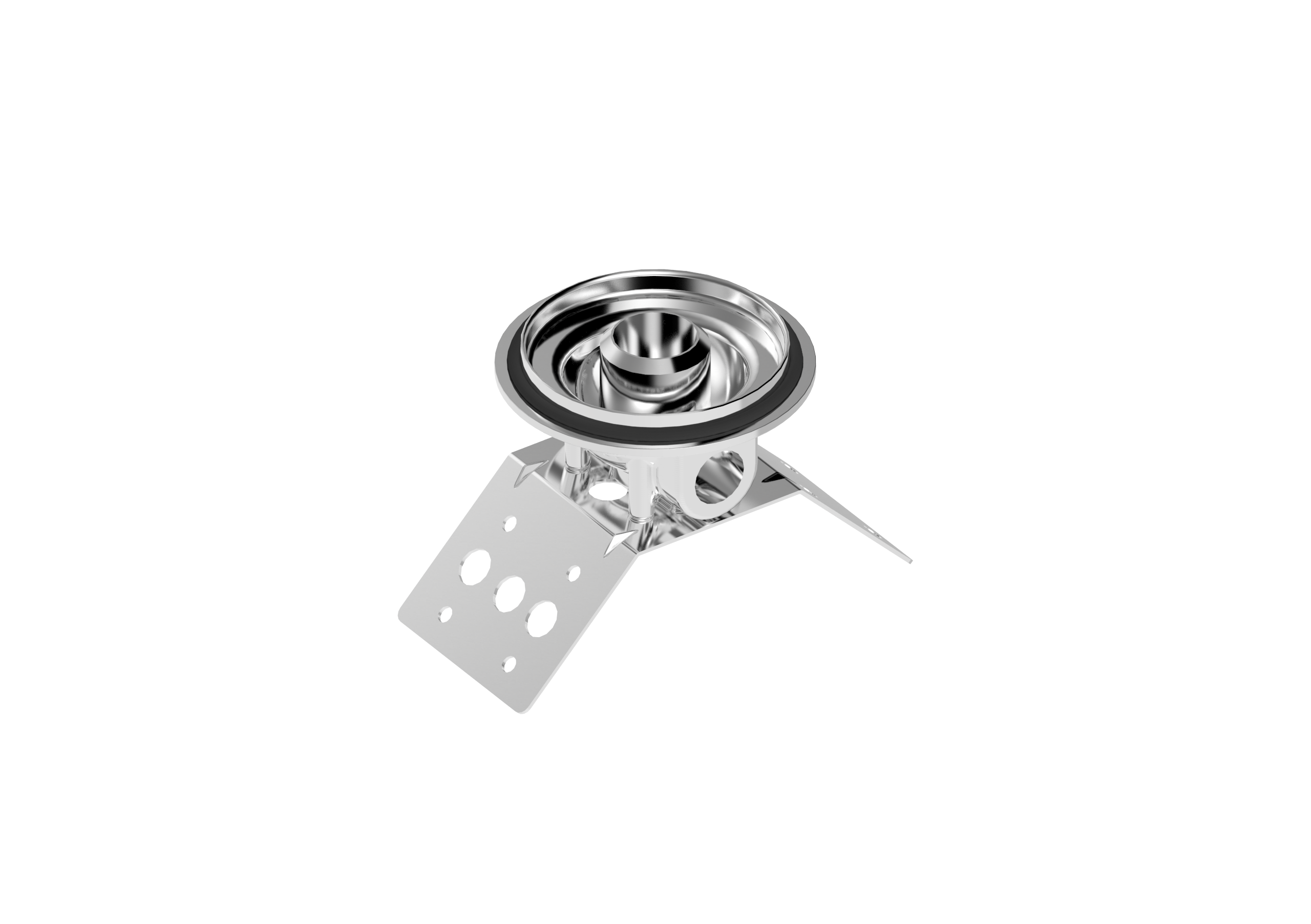

5. Wall- hanging and upright stand function in one support leg.
6. Inside & surface polishing.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| HT | 1 | 4 | F | 1 | PF | E | PP |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
HT |
1-10" 2-20" |
4-304 |
F-DOE 5-222 |
1-1" |
PF-PT/BSPT/Rc NF-NPT (Female)
|
E-EPDM N-NBR V-VITON S-SILICONE |
A-Acid Pickling E-Electropolishing P-Polishing |
1. Clamp
2. Vent
3. Bottom cover
4. Shell
5. Nut
6. Gasket
7. Filter cartridge
8. Screw rod
9. Shell flange
10. O-ring
11. Head
12. Mounting bracket
| Model | Length | N1/N2 | N3 | A m/m | B m/m | C m/m | D m/m | E m/m | F m/m |
| HT1 | 10" | 1" | 1/4" | Ø127 | 436 | 89 | 100 | 370 | 66 |
| HT2 | 20" | 1" | 1/4" | Ø127 | 686 | 89 | 100 | 620 | 66 |
