Design P.: 150 PSI
Design T.: 100°C
Max Operating P.: 150 PSI
Operating T.: 75°C
Accessory: Cartridges, Mounting bracket
1. Single-pack and easy installation filter housing.
2. Lightweight design and makes space-saving.
3. Well O-ring groove design improves sealing and prevents loosening
4. One well design pedestal is available with both DOE and SOE cartridge specification.
5. Bolt type closure for fast installation and easy filter cartridge change-outs without tool.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| TJ | 1 | 4 | F | 1 | PF | E | BA |
| Model | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
TJ |
1-10" |
4-304 |
F-DOE |
43-3/4" |
150P-ANSI |
E-EPDM |
A-Acid Pickling |

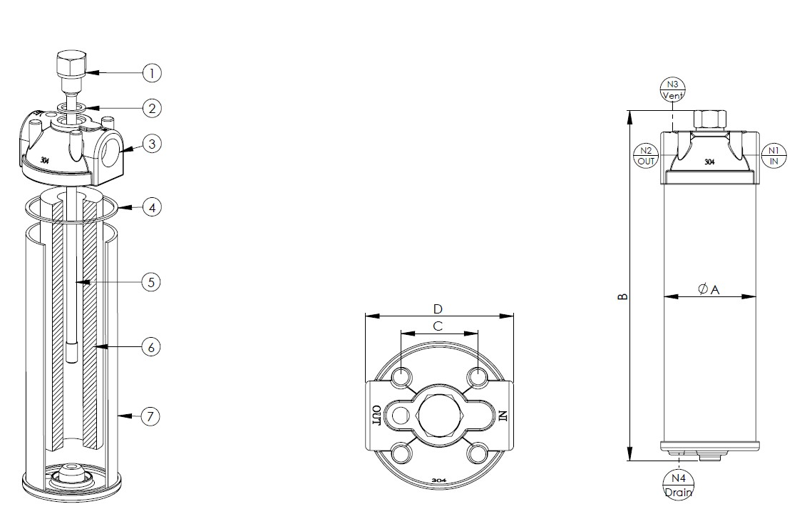

1. Nut
2. Gasket
3. Cap
4. Gasket
5. Screw rod
6. Cartridge
7. Shell
| Model | Length | N1/N2 | N3/N4 | A m/m | B m/m | C m/m | D m/m | M³/Hr | GPM |
| TJ1 | 10" | 3/4"~1" | 1/4" | Ø89.1 | 340 | 96 | 50 | 1 | 4 |
| TJ2 | 20" | 3/4"~1" | 1/4" | Ø89.1 | 595 | 96 | 50 | 2 | 9 |
| TJ3 | 30" | 3/4"~1" | 1/4" | Ø89.1 | 850 | 96 | 50 | 3 | 13 |
