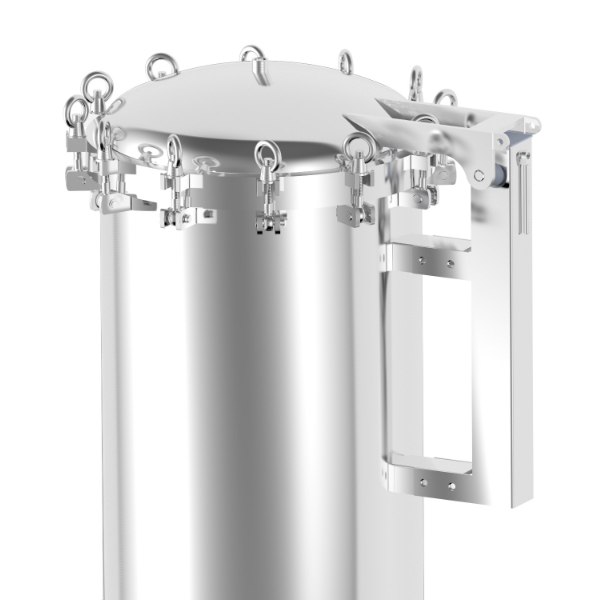

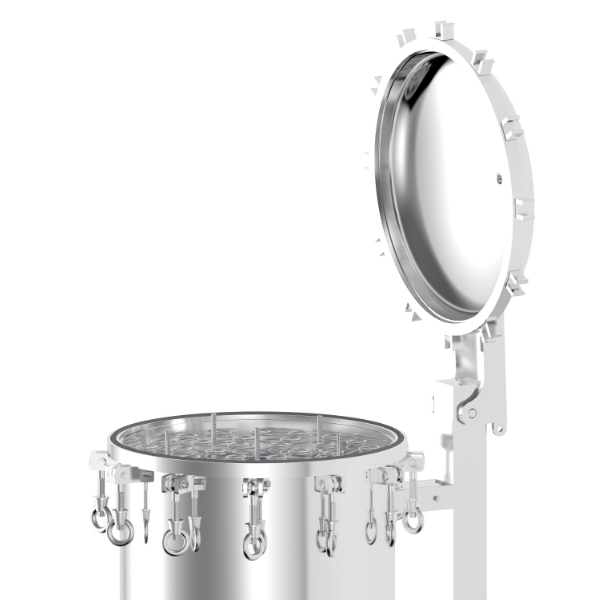

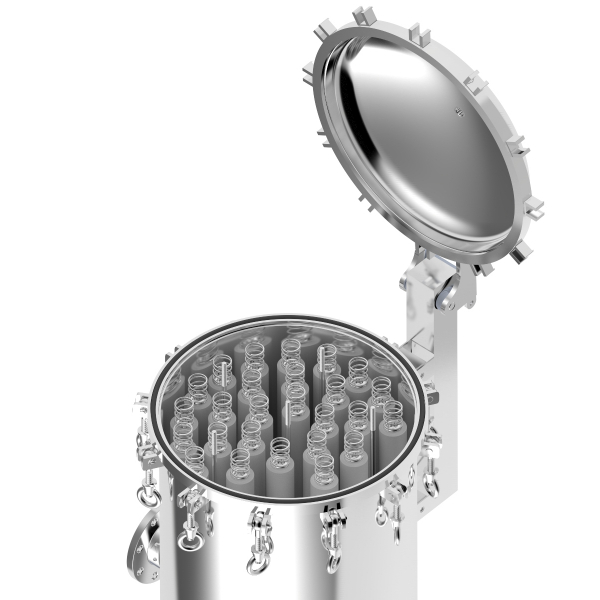

1. Easy-open spring lid type cover allows it opens in different angle without tool.
2. Swing-bolt type closure contributes to easy installation.
3. Well O-ring groove design improves sealing and prevents loosening.
4. One well design pedestal is available with both DOE and SOE cartridge specification.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| TR | 20 | 3 | 4 | F | 3 | 10K | E | EA |
| Model | No. of Rounds | Length | Material | Adapters | Connection Size | Connection Type | O-ring | Outside/Inside Finishes |
TR |
13-82 |
3-30" 4-40" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
2-2" 221-2-1/2" 3-3” 4-4” 5-5" 6-6"
|
150P-ANSI 10K-JIS PN10-DIN C-Clamp PF-PT/BSPT/Rc |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing S- Sand Blasting |
1. Top cover
2. Top cover flange
3. Vent
4. Eye nut socket
5. Raise cover units
6. O-ring
7. Threaded rod
8. Nut
9. Shell flange
10. Eye bolt socket
11. Eye bolt
12. Pressure plate
13. Springs
14. Cartridge post
15. Shell
16. Pedestal
17. Inlet / Outlet
18. Cartridge seat plate
19. Nut
20. Drain
21. Bottom cover
22. Support leg
| Model | Length | N1/N2 |
N4/N5 |
A m/m | B m/m | C m/m | D m/m | E m/m | F (PCD) m/m | G m/m | M³/Hr | GPM |
| TR13~20 | 30" | 2"~4" | 1" | Ø406 | 1451 | 700 | 350 | 606 | Ø516 | Ø14 | 39~60 | 172~264 |
| TR13~20 | 40" | 2"~4" | 1" | Ø406 | 1701 | 700 | 350 | 606 | Ø516 | Ø14 | 52~80 | 229~352 |
| TR21~28 | 30" | 3"~4" | 1" | Ø508 | 1470 | 700 | 350 | 708 | Ø618 | Ø14 | 63~84 | 277~370 |
| TR21~28 | 40" | 3"~4" | 1" | Ø508 | 1720 | 700 | 350 | 708 | Ø618 | Ø14 | 84~112 | 370~493 |
| TR29~40 | 30" | 3"~4" | 1" | Ø560 | 1481 | 700 | 350 | 760 | Ø704 | Ø18 | 87~120 | 383~528 |
| TR29~40 | 40" | 3"~4" | 1" | Ø560 | 1731 | 700 | 350 | 760 | Ø704 | Ø18 | 116~160 | 511~704 |
| TR41~52 | 30" | 4"~6" | 1" | Ø600 | 1569 | 800 | 400 | 800 | Ø744 | Ø18 | 123~156 | 542~687 |
| TR41~52 | 40" | 4"~6" | 1" | Ø600 | 1819 | 800 | 400 | 800 | Ø744 | Ø18 | 164~208 | 722~916 |
| TR53~57 | 30" | 4"~6" | 1" | Ø650 | 1638 | 850 | 450 | 850 | Ø794 | Ø18 | 159~171 | 700~753 |
| TR53~57 | 40" | 4"~6" | 1" | Ø650 | 1908 | 850 | 450 | 850 | Ø794 | Ø18 | 212~228 | 933~1004 |
| TR58~82 | 30" | 4"~6" | 1-1/2" | Ø762 | 1711 | 950 | 500 | 962 | Ø962 | Ø19 | 174~246 | 766~1083 |
| TR58~82 | 40" | 4"~6" | 1-1/2" | Ø762 | 1961 | 950 | 500 | 962 | Ø962 | Ø19 | 232~328 | 1021~1444 |
