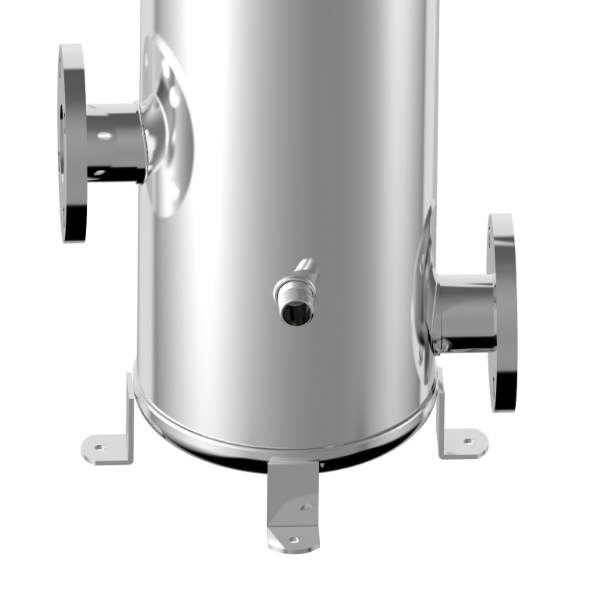

1. 2~7 Filter cartridges for low pressure water filter.
2. Clamp type closure with SUS301 surface layer allows for tightly closure without tool.
3. Well O-ring groove design improves sealing and prevents loosening
4. One well design pedestal is available with both DOE and SOE cartridge specification.
Water treatment
RO protection and pre-filtration process
Seawater
Groundwater
Sludge treatment
Food & Beverage Industry
Wine & Beer
Food industry
Chemicals & Biotechnology
Pharmaceutical & Cosmetic
Electroplating Industry
Electronic Industry
Semiconductor
Refinery & Production Filtration
Automotive
Mining, Oil & Gas
Cooling tower
| TL | 7 | 2 | 4 | F | 2 | PF | E | EA |
| Model | No. of Rounds | Length | Material | Adapter | Connection Size | Connection Type | O-ring | Outside & Inside Finishes |
3 4 6 7
|
1-10" 2-20" 3-30" 4-40" |
4-304 6-316 6L-316L |
F-DOE 5-222 7-226 |
21-1/2" 43-3/4" 1-1" 121-1-1/2" 2-2" 221-2-1/2" 3-3" 4-4" |
150P-ANSI |
E-EPDM N-NBR V-VITON S-SILICONE TS-TEFLON+SILICONE |
A- ACID-Pickling E- Electropolishing P- Polishing |

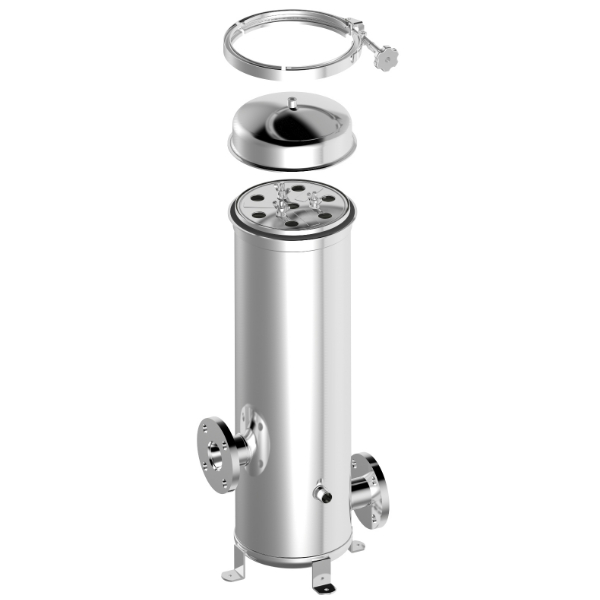

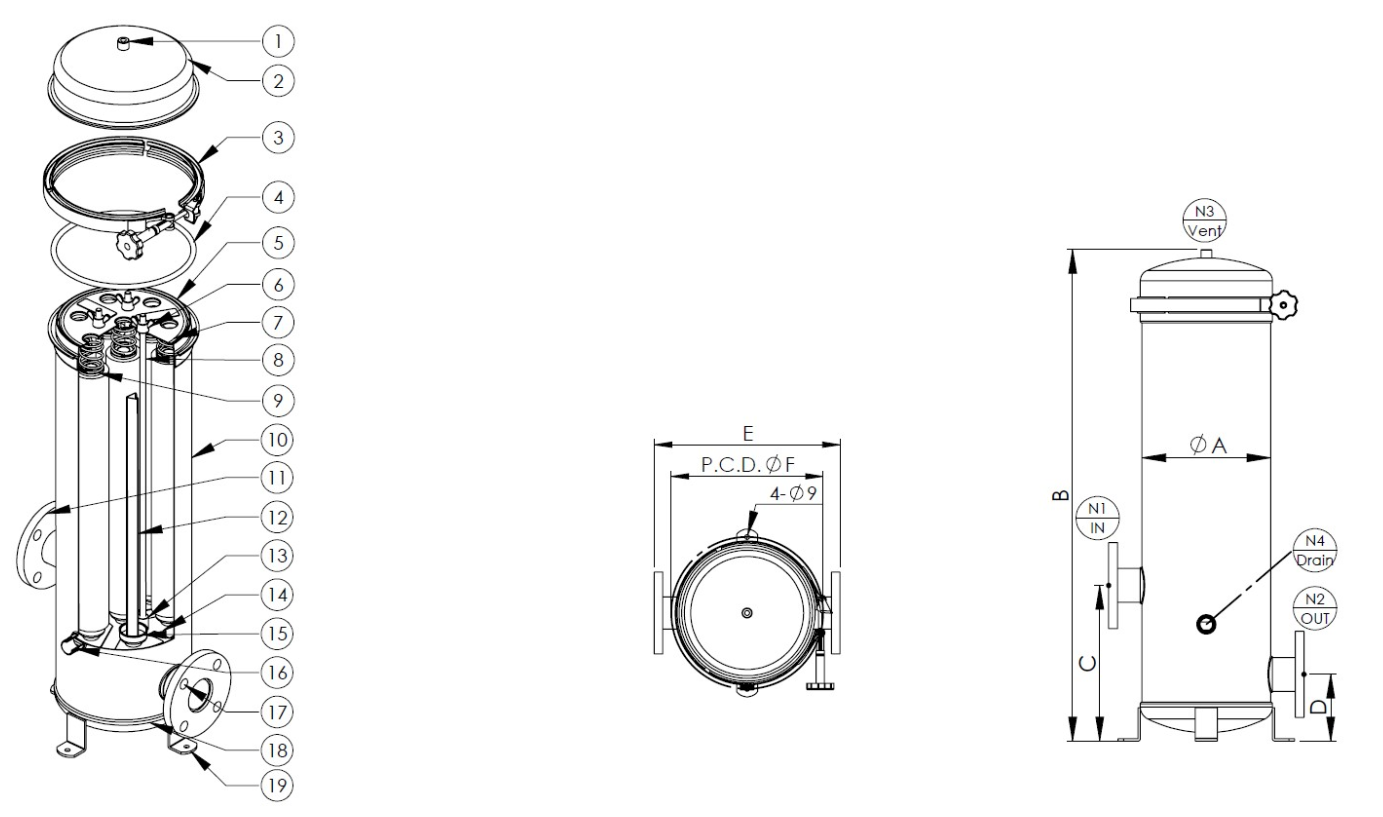

1. Vent
2. Top Cover

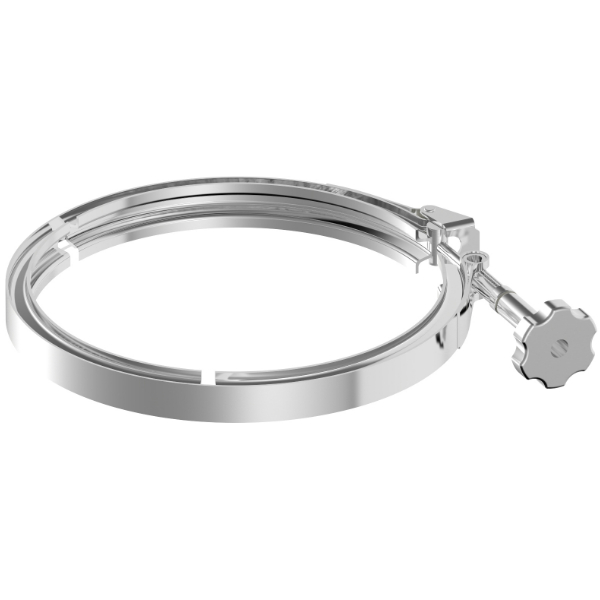

3. Clamp
4. O-ring
5. Shell flange
6. Nut
7. Pressure plate
8. Threaded rod
9. Springs
10. Shell
11. Inlet
12. Cartridge post
13. Nut
14. Cartridge seat plate
15. Pedestal
16. Drain
17. Outlet
18. Bottom cover
19. Support leg
| Model | Length | N1/N2 | N3 | N4 | A m/m | B m/m | C m/m | D m/m | E m/m | F (PCD) m/m | M³/Hr | GPM |
| TL3~4 | 10" | 1/2"~3" | 1/4" | 3/4" | Ø180 | 625 | 280 | 120 | 300 | Ø236 | 3~4 | 13~18 |
| TL3~4 | 20" | 1/2"~3" | 1/4" | 3/4" | Ø180 | 890 | 280 | 120 | 300 | Ø236 | 8~6 | 26~35 |
| TL3~4 | 30" | 1/2"~3" | 1/4" | 3/4" | Ø180 | 1145 | 280 | 120 | 300 | Ø236 | 9~12 | 39~53 |
| TL5~7 | 10" | 1/2"~3" | 1/4" | 3/4" | Ø232 | 625 | 280 | 120 | 352 | Ø288 | 5~7 | 22~31 |
| TL5~7 | 20" | 1/2"~3" | 1/4" | 3/4" | Ø232 | 890 | 280 | 120 | 352 | Ø288 | 10~14 | 44~62 |
| TL5~7 | 30" | 1/2"~3" | 1/4" | 3/4" | Ø232 | 1145 | 280 | 120 | 352 | Ø288 | 15~21 | 66~93 |
| TL5~7 | 40" | 1/2"~3" | 1/4" | 3/4" | Ø232 | 1400 | 280 | 120 | 352 | Ø288 | 20~28 | 88~124 |
